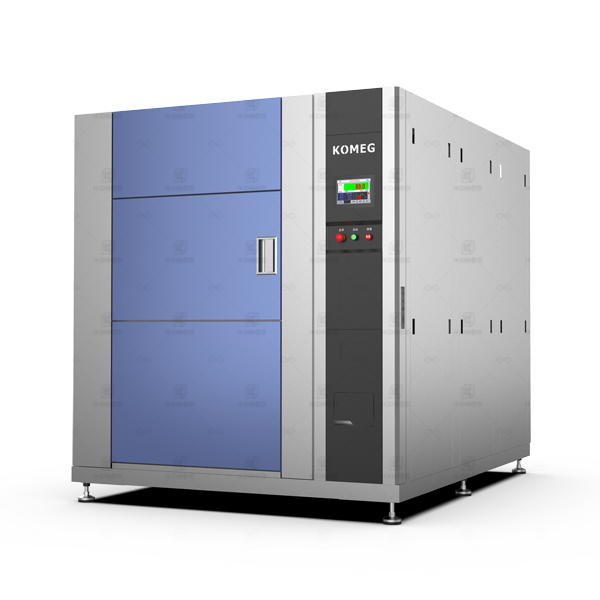

Energy storage cold and heat shock chamber

Thermal Shock Chambers

Model：KTS-100
Volume：100L
Temp.shock Range：-65~+150℃
Recovery Time：≤5min

Product application

Products introduction

Adopt 3Zone damper switching temperature cycle impact. It is applicable to the assessment of the ability of products (complete machines), components, parts, etc. to withstand sharp temperature changes. The temperature impact test can understand the impact of one or more times of rapid temperature changes on the test sample.

Product alias: cold and hot impact testing machine, temperature impact testing machine, thermal stress compound testing machine, cold and hot impact testing machine, high and low temperature impact testing machine, reliability testing equipment, etc.

Technical parameters

Model No. Model		KTS-
Model No. Model		100A/B/D	150A/B/D	200A/B/D	252A/B/D	300A/B/D	480A/B/D
Test Space Volume		100L	150L	200L	252L	300L	480L
Regenerative chamber	High Temp.Chamber	+60℃～ +200℃
Regenerative chamber	Pre-heating time	from normal temperature RT ~ +200ºC within 30 min
Cold storage chamber	Temp.exposure range	(A)0℃~-40℃ (B)0℃~-55℃ (D)0℃~-65℃
Cold storage chamber	Pre-cooling time	from normal temperature RT~-70℃ within 60min
工作室	Temp.shock range	(A)-40℃~+150℃ (B)-55℃~+150℃ (D)-65℃~+150℃
	Temp. uniformity	≤±2.0℃
	Temp. fluctuation	≤±0.5℃
	Temp.deviation	±2℃
	Recovery time	≤5min
Inner chamber size	Width	50cm	60cm	65cm	70cm	80cm	80cm
	Height	45cm	50cm	46cm	60cm	46cm	75cm
	Depth	45cm	50cm	67cm	65cm	81.5cm	81.5cm
Exterior chamber size	Width	151cm	162cm	166cm	190cm	181cm	181cm
	Height	198cm	215cm	198cm	190.5cm	198cm	227cm
	Depth	202cm	230cm	230cm	194cm	233.5cm	235cm
Safety protection device	NFB(No fuse breaker), over pressure, over heat and over current protectors for compressor, over temperature protectors, over load protector of fan, dry heat protector,short of water protector

Product features

◎Intelligent load regulation, high and low temperature impact 1000 cycles without frost, fast temperature recovery time, improve test efficiency, can do high and low temperature, normal temperature impact test.

◎Three box energy storage structure design, no need to move the sample, easy to test cable connection, relatively static, without any mechanical impact.

◎Three boxes (energy storage type) and two boxes (basket type) of temperature shock box can be customized according to the characteristics of the sample.
