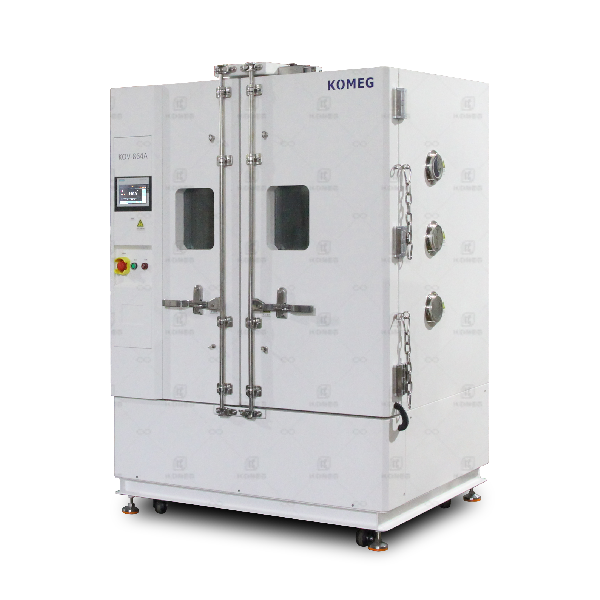

large high temperature oven

Industrial Ovens

Model：KOV-864A
Temp Range：Rt+20~+400℃
Temp.Fluctuation：±0.5℃
Volume：864L

Product application

Products introduction

The test volume is 3.45M³, and the temperature fluctuation is ±0.5℃. It is suitable for drying, baking, sterilization, disinfection, heat preservation, and heat treatment tests of non-volatile materials in industrial and mining enterprises, schools, food, chemical, and scientific research units. It is widely used in heat treatment and temperature characteristic tests on industrial production lines.

Product aliases: industrial oven, industrial oven, precision industrial oven, industrial drying oven, laboratory oven, high temperature oven, high temperature oven, high temperature precision oven, large oven, double door oven, two slot oven, hot air circulation oven, constant temperature oven, Blast oven, blast drying oven, production line oven, etc.

Technical parameters

Model		KOV-50	KOV-200	KOV-432	KOV-768	KOV-1000	KOV-1320	KOV-3456	More models Non-standard customization
Inner chamber size/cm	Width	40	60	60	80	90	150	160
	Height	35	60	120	120	110	110	180
	Depth	35	60	60	80	100	80	193
Temp.Range		ART+20℃～+200℃ BRT+20℃～+300℃ CRT+20℃～+400℃ DRT+20℃～+500℃
Temp.uniformity		±2.0℃
Temp.fluctuation		±0.5℃
Heating time		RT+20℃ ～ +200℃ 60min no load
Temperature control method		Regulation and control: forced convection temperature regulation, heating PID+SSR regulation
Noise		≤75 decibels (dB) (measured at a distance of 1m from the noise detection device to the equipment door)
Cabinet material	Inner chamber material	SUS 201/304 stainless steel plate
	Exterior chamber material	High-quality cold-rolled steel plate, electrostatic powder paint on the surface, the color is KOMEG standard color
	Insulation	High-quality glass fiber cotton, thickness ≧ 100mm, flame retardant grade A1
Power Specifications		380V AC(±10%)50±0.5Hz

Product features

◎Forced convection temperature regulation; heating PID+SSR regulation method.

◎Precision temperature controller to achieve high precision (0.1%) and high performance.

◎Independently adjustable electronic over-temperature protection device.

◎Satisfying the local area network (LAN) RS232/485 connection to form a laboratory measurement and control network, realize remote monitoring, and facilitate user system integration and automatic monitoring.
