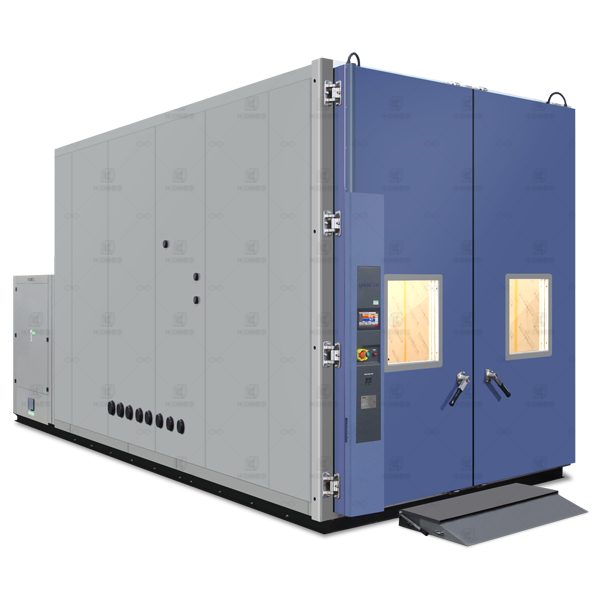

Walk-in temperature and humidity test Chamber

Walk-In Env Chambers

Model: KMHW-55
Volume:55³
Temp Range:-70~+150℃
Humidity Range:20%R.H～98%R.H

Product application

Products introduction

KOMEG walk-in temperature and humidity laboratory adopts integral and modular design, flexible combination and convenient disassembly and assembly.

It is suitable for batches of small samples or large-scale components, and simulates the impact of different climatic conditions such as temperature and humidity on the performance and life of the product.

Technical parameters

Model		KMHW-
		4	8	10	15	20	45	55
Inner chamber size/cm	Wide	200	200	204	250	250	500	500
	High	200	200	210	300	200	300	220
	Deep	100	200	210	200	400	300	500
Inner tank volume/m³		4	8	10	15	20	45	55
Temp.Range	Maximum test temperature: 80°C, 150°C; minimum test temperature：-60℃、-50℃、-40℃、-30℃、-20℃、-10℃、0℃
Temp.deviation	≦±2.0℃
Temp.fluctuation	±0.5℃
Temp.uniformity	≦2.0℃
Humidity range	10%、20%、30%～95%
Humidity Deviation	±3.0%RH(>75%RH)±5.0%RH(≤75%RH)
Humidity Uniformity	±3.0%RH(no load)
Humidity fluctuation	±2.0%RH
Temperature and humidity range
Heating and cooling rate	升温时间	+20℃↑+80℃ C17within 60 minutes
	降温时间	+20℃↓-60℃、-50℃、-40℃、-30℃、-20℃、-10℃ 120 minutes or 90 minutes or less than 60 minutes
Noise	≦68分贝（The noise detection device is measured at a distance of 1m from the equipment gate）
System	Balanced temperature and humidity control system
Inner chamber material	SUS304 stainless steel plate, thickness = 1.0 mm
Exterior chamber material	High-quality anti-corrosion electrolytic board, electrostatic powder baking paint on the surface, and the color is Comyn standard color
Insulation material	Rigid polyurethane foam insulation layer, thickness = 100mm, flame retardant class B2
refrigeration system	Refrigeration system	Mechanical compression refrigeration mode, using intelligent refrigeration control: according to the temperature in the box and the load demand, PID controls the solenoid valve switch to output cooling capacity or PID controls the heater (cooling does not heat, heating does not cool)
	Cooling method	Water-cooled
	Refrigeration unit	Cascade hermetic compressor, environmentally friendly refrigerant; single-stage hermetic compressor, environmentally friendly refrigerant
Composition form of unit and storage body	One-piece or split-type (according to design requirements)
Protective device	a. Protection switch for heater empty ignition prevention; b. Heater overcurrent circuit breaker; c. Overcurrent overload protection for circulating fan; d. Compressor high voltage protection switch; e. Compressor overheat protection switch; f. Compressor overcurrent Protection switch; g. Overvoltage and under-reversal protection switch; h. Circuit breaker; i. Leakage switch; j. Zero-crossing thyristor power controller; k. Water shortage protection
Standard accessories	Heat-insulating glass window, lead hole (Φ50, 100mm), 1 set of lighting, indicator light
Environmental conditions	1. +5℃～+35℃ 2. Atmospheric pressure 80kPa~106kPa 3. Flat ground without vibration 4. Relative humidity: not more than 85%R.H
power supply	AC380±10%50Hz three-phase four-wire+ground wire

Product features

Support standard modular customization.

With the aim of shortening equipment lead times and reducing design and engineering costs associated with generic custom walk-ins without compromising equipment quality and reliability, KOMEG introduces modular custom design solutions.

◎ Laboratory warehouse board: high-density foamed thermal insulation color steel plate, which can meet multiple assembly and disassembly operations, and strengthen the bottom plate to reach a load of 3000kg/m².

◎ Refrigeration System: Contains the cooling unit and humidification system required to control the temperature and humidity in the walk-in room.

◎ Ventilation system: The powerful fan absorbs heat from the air in the test room for cooling and dehumidification, and the temperature is more uniform.

◎ Control system: KOMEG independently developed TT-5166 programmable 7" color touch screen controller, which has the characteristics of automatic, intelligent and humanized control.
