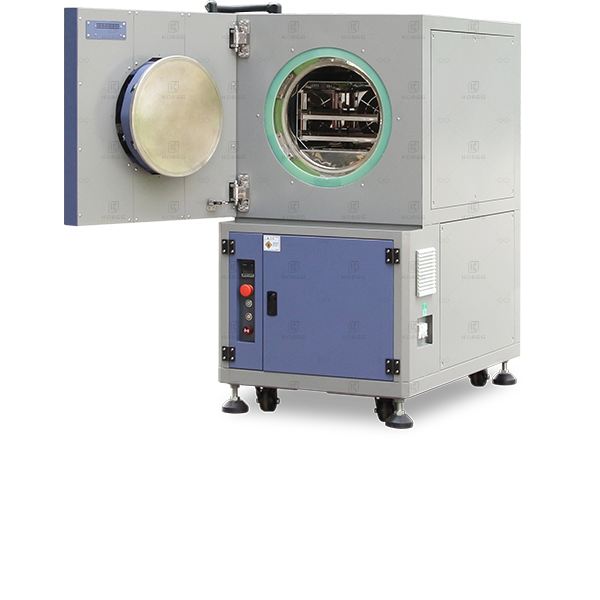

Highly accelerated temperature and humidity stress testing machine

HAST Chambers

HAST-55
+105℃～+135℃
65~100％RH
0.05Mpa~0.3Mpa

Product application

Products introduction

The high accelerated temperature and humidity stress testing machine meets the JESD22 bias or unbiased accelerated humidity resistance test. It is used to evaluate the operation reliability of non airtight packaged IC devices (solid state equipment) under high temperature and high humidity conditions, and conduct temperature humidity bias (non bias) high accelerated stress life aging test on chips, semiconductors and other components.

Product alias: high accelerated temperature and humidity stress testing machine, temperature and humidity bias life testing machine, high accelerated temperature and humidity stress testing machine, unbiased voltage UHAST unsaturated high pressure steam testing machine, steady state humidity and heat life aging testing machine, BHAST.

Technical parameters

Model No.		KM-HAST-25	KM-HAST-35	KM-HAST-40	KM-HAST-55
Inner chamber size	Diameter	φ25	φ35	φ40	φ55
	Depth	D45	D45	D45	D65
Exterior chamber size	Width	W56	W73	W75	W115
	Height	H125	H163	H155	H155
	Depth	D105	D110	D130	D140
Temp.range (Saturated/Unsaturated)		105~151.4℃（100%R.H）；105.0~133.3℃（100%R.H）
		110.0~157.5℃（85%R.H）；110.0~140.0℃（85%R.H）
		118.0~162.5℃（65%R.H）；118.0~150.0℃（65%R.H）
Humidity range		65% ～ 100%R.H
Pressure range (Saturated/Unsaturated)		0.019~0.393MPa
		0.019~0.208MPa
Temp. fluctuation		±0.5℃
Temp. uniformity		±0.5℃
Humidity Fluctuation		±2.0％RH
Humidity Deviation		±5.0％RH
Pressure Deviation		≤±2 kPa
Heat up rate		+25℃～+135℃， The whole process takes about 45minutes on average (no load, no heat)
Boost time		0→0.196MPa，About 20min
Safety protection device		a. Protection switch for heater empty burning prevention b. Heater overcurrent circuit breaker c. Overcurrent overload protection for circulating fan d. Compressor high voltage protection switch e. Compressor overheat protection switch f. Compressor overcurrent protection switch g. Overvoltage under reverse phase protection switch h. Circuit breaker i. Leakage switch j. Zero-crossing thyristor power controller k. Water shortage protection

Product features

◎The double arc design of the inner liner can prevent condensation and water dripping during the test, so as to prevent the product from being directly impacted by superheated steam during the test.

◎The product meets JESD22-A100 to A118 bias (BHAST) or unbiased (UHAST) accelerated moisture resistance test and saturated high-pressure steam (cooking) test.

◎The product is compatible with high accelerated temperature and humidity stress HAST aging test and high-pressure cooking PCT moisture resistance test.
