Industrial Ovens

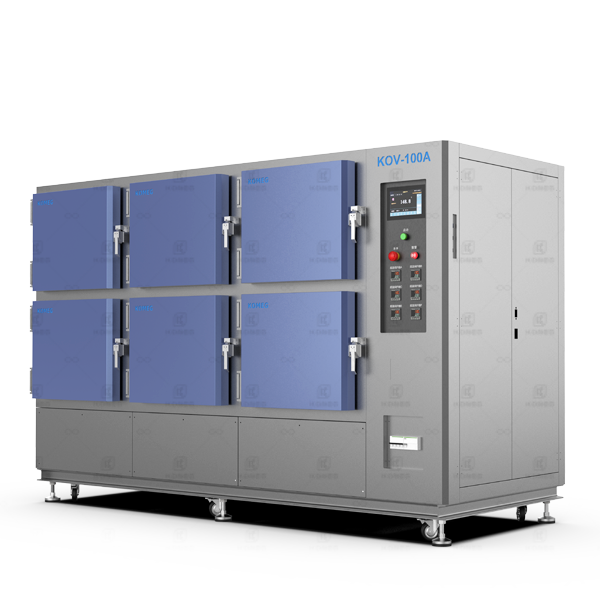

Six-slot high temperature chamber
  • Model:KOV-100-6
  • Temp Range:Rt+20~+400℃
  • Temp.Fluctuation:±0.5℃
  • Volume:100L
Products introduction

It is suitable for drying, baking, sterilization, disinfection, heat preservation, and heat treatment tests of non-volatile materials in industrial and mining enterprises, schools, food, chemical, and scientific research units. It is widely used in heat treatment and temperature characteristic tests on industrial production lines.


Product alias: six-chamber temperature environment test chamber, six-slot high temperature chamber

Technical parameters
Model KOV-100A-6 zones
Studio volume 100L
Inner chamber size W500×H400×D500mm
Exterior chamber size W2540×H1690×D1120mm
Temp.Range (A)RT+20℃~+200℃
Temp.deviation ±1.5℃
Temp.fluctuation ±0.2℃
Temp.uniformity ±2.0℃(RT+20℃~+100℃),±3.0℃(+101℃~+200℃)
Heating time RT~+20℃~+200℃,60℃/min no load
Cooling method Ambient air is introduced from the fresh air system (when the best room temperature is <29°C) to cool the inside of the box
Explosion-proof window observation window on door
Explosion-proof pressure relief port Mechanical explosion-proof pressure relief port, when the pressure exceeds the set value, the explosion-proof door will automatically open to relieve the internal pressure of the box
Smoke detector When the salt spray sensor detects that there is smoke in the box, it can quickly remind


Product features

◎Adopt air blast device and adjustable wind speed device, forced convection temperature regulation; heating PID+SSR regulation method


◎Precision temperature controller, improve temperature uniformity, achieve high precision (0.1%), high performance


◎Integrated independently adjustable electronic over-temperature protection device, electromechanical control of exhaust valve, optical alarm device


◎Meet the local area network (LAN) RS232/485 connection to form a laboratory measurement and control network, realize remote monitoring, and facilitate user system integration and automatic monitoring


◎Precise calculation of fluid mechanics, energy saving up to 30% compared with common equipment on the market
