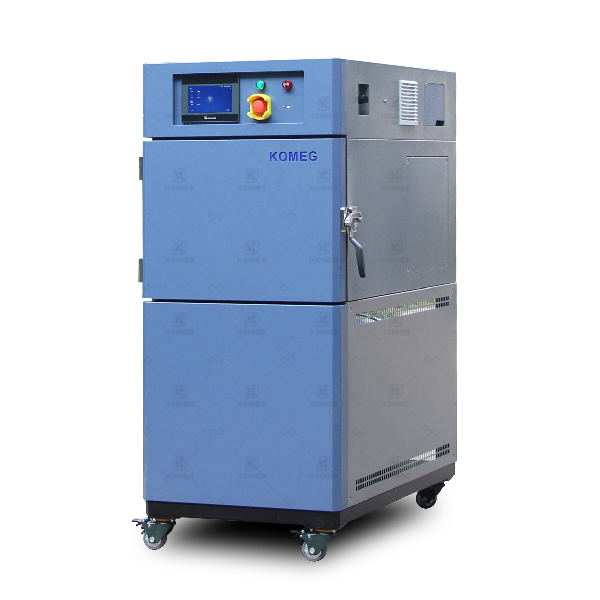

Rapid decompression test chamber

Altitude Test Chambers

Model：KUO-64
Volume：64L
Pressure Range：Atmospheric pressure～18.8kPa
Pressure Deviation：≤±2kPa

Product application

Products introduction

64L effective test volume, normal pressure to 75.2kPa)≦10m/s. It is suitable for vacuum baking in the production process of battery cores. It uses the dual characteristics of vacuum and high temperature to quickly dry and remove the moisture in the pole material. It can also be used to simulate the rapid damage caused by sudden damage to the sealed cabin of manned spacecraft or aircraft. In the case of decompression, test the safety and reliability of aerospace products.

Product aliases: rapid decompression test chamber, rapid pressure change chamber, extremely fast pressure change test chamber, rapid decompression test chamber.

Technical parameters

Model	KUO-64（Rapid decompression test chamber）
Inner chamber size	W400×H400×D400mm
Exterior chamber size	W550×H950×D1000mm
Studio volume	64L(Support non-standard customization of other sizes)
Pressure range	Atmospheric pressure～18.8kPa
Buck time	Atmospheric pressure ~ 75.2k (2438m) ≤ 10m/s (no load, normal temperature, when the inner box is dry) 75.2~18.8kPa≤15s (no load, normal temperature, when the inner box is dry)
Pressure deviation	≤±2kPa(≥40kPa时)；≤±5kPa（2~40kPa时）
Load	≤10kg
Safety protection	Phase sequence protection, phase loss protection, leakage protection, overload short circuit protection
use environment	1. Ambient temperature 5°C~35°C; 2. Relative humidity not greater than 85%RH; 3. Atmospheric pressure 80kPa~106kPa; 4. Flat ground without vibration; 5. No high concentration of dust and corrosive substances around.

产品特点

◎Integrated design, effectively saving land cost.

◎The rapid decompression performance is superior, and the pressure tolerance is small, ensuring the accuracy of the test data.

◎Customized to meet temperature and other buck-boost rate requirements.
