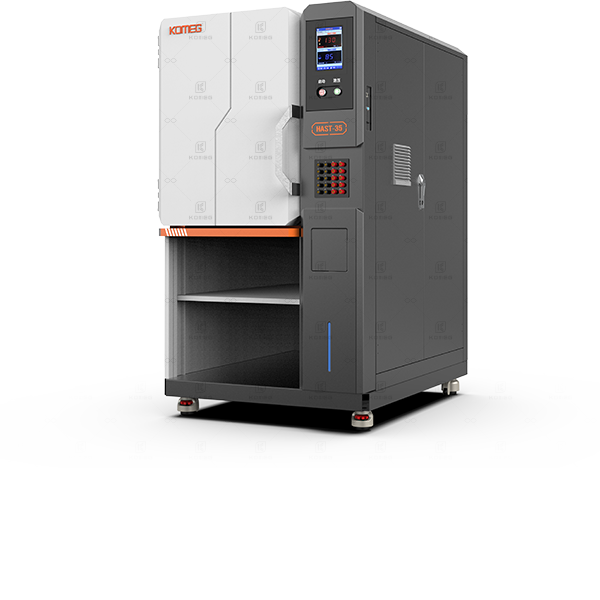

PCT high-pressure cooking aging test chamber

PCT high-pressure cooking aging test chamber meets JESD22-A102 accelerated moisture resistance penetration test. Used for moisture resistance evaluation and robustness test. The purpose is to evaluate the moisture resistance of non hermetic packaged solid state components in compressed and saturated moisture environments. Accelerate the penetration of moisture (plastic packaging material, chip passivation layer) or design change (chip, electric shock size) into the interface between the metal conductive layer under high pressure and high humidity, so as to identify the failure mechanism inside the package.

Product alias: PCT high-pressure cooking aging test chamber, PCT aging test machine, PCT unbiased high-pressure accelerated moisture resistance test chamber, accelerated moisture penetration test chamber, saturated steady state damp heat aging life test chamber.

Model No.		KM-HAST-25	KM-HAST-35	KM-HAST-40	KM-HAST-55
Inner chamber size	Diameter	φ25	φ35	φ40	φ55
	Depth	D45	D45	D45	D65
Exterior chamber size	Width	W56	W73	W75	W115
	Height	H125	H163	H155	H155
	Depth	D105	D110	D130	D140
Temp.range (Saturated/Unsaturated)		105~151.4℃（100%R.H）；105.0~133.3℃（100%R.H）
		110.0~157.5℃（85%R.H）；110.0~140.0℃（85%R.H）
		118.0~162.5℃（65%R.H）；118.0~150.0℃（65%R.H）
Humidity range		65% ～ 100%R.H
Pressure range (Saturated/Unsaturated)		0.019~0.393MPa
		0.019~0.208MPa
Temp. fluctuation		±0.5℃
Temp. uniformity		±0.5℃
Humidity Fluctuation		±2.0％RH
Humidity Deviation		±5.0％RH
Pressure Deviation		≤±2 kPa
Heat up rate		+25℃～+135℃， The whole process takes about 45minutes on average (no load, no heat)
Boost time		0→0.196MPa，About 20min
Safety protection device		a. Protection switch for heater empty burning prevention b. Heater overcurrent circuit breaker c. Overcurrent overload protection for circulating fan d. Compressor high voltage protection switch e. Compressor overheat protection switch f. Compressor overcurrent protection switch g. Overvoltage under reverse phase protection switch h. Circuit breaker i. Leakage switch j. Zero-crossing thyristor power controller k. Water shortage protection

◎The double arc design of the inner liner can prevent condensation and water dripping during the test, so as to prevent the product from being directly impacted by superheated steam during the test.

◎The product meets JESD22-A102-EPCT high-pressure cooking test and JESD22-A102-DPCT unbiased high-pressure accelerated moisture resistance test.
