Industrial Ovens

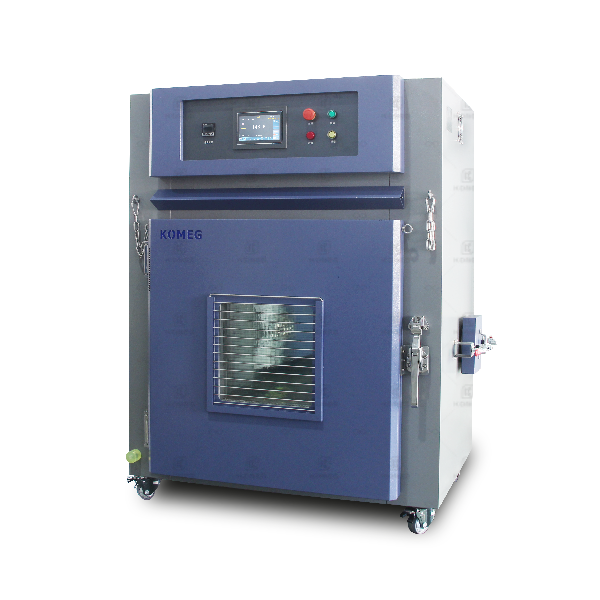

Explosion-proof oven
  • Model:KOV-684B
  • Volume:384L
  • Temp Range:Rt+20~+400℃
  • Temp.Fluctuation:±0.5℃
Products introduction

The temperature range is adjustable from Rt to 300°C, with a special explosion-proof device. It is suitable for drying, baking, sterilization, disinfection, heat preservation, and heat treatment tests of non-volatile materials in industrial and mining enterprises, schools, food, chemical, and scientific research units.


Product aliases: industrial oven, industrial oven, precision industrial oven, industrial drying oven, laboratory oven, high temperature oven, high temperature oven, high temperature precision oven, large oven, double door oven, two slot oven, hot air circulation oven, constant temperature oven, Blast oven, blast drying oven, production line oven, etc.

Technical parameters
Model KOV-384B(Explosion-proof)
Inner chamber size W800×H800×D600mm
Exterior chamber size W1200×G1600×D920mm
Temp.Range RT+20℃ ~ +300℃,0.5℃~8℃/min adjustable, load 200W
Temp.fluctuation ±0.5℃
Heating time RT+20℃ ~ +300℃,60min no load
Explosive Pressure Relief Device When the pressure in the equipment or pipeline exceeds the pressure of the safety valve, it will automatically open the pressure relief
Equipped with: sensor switch, exhaust fan.
Function:
a. When the test product in the box explodes, there is a pipeline for pressure release
b. Protect test equipment from damage caused by sudden changes in air pressure
c. Protection of personnel
Safety device a. Over-temperature protector; b. Motor overload protector; c. Safety protection device; d. Fault indicator light; e. No fuse switch


Product features

◎Forced convection temperature regulation; heating PID+SSR regulation method.


◎Precision temperature controller to achieve high precision (0.1%) and high performance.


◎Independently adjustable electronic over-temperature protection device.


◎Satisfying the local area network (LAN) RS232/485 connection to form a laboratory measurement and control network, realize remote monitoring, and facilitate user system integration and automatic monitoring.


◎Equipped with explosion-proof windows and explosion-proof chain design, it can effectively protect the safety of experimenters.
